Phantom I 103 dB

Description

Phantom I 103 dB

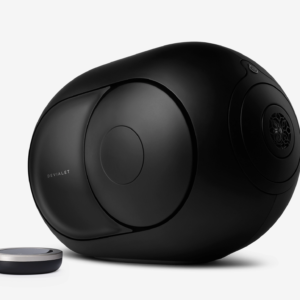

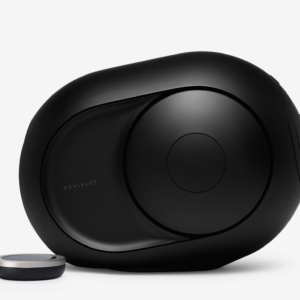

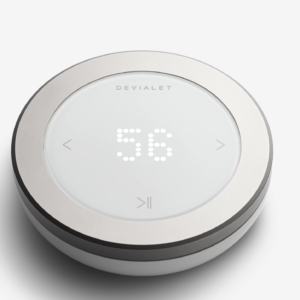

Phantom I 103 dB with its Remote features every class-leading Devialet invention bringing you high-fidelity and ultra-dense sound in a compact design that fits in your home. Enjoy physical impact unlike anything you’ve ever felt.
Specifications
Loudspeakers
Aluminum Tweeter driver
Aluminum Medium driver
Aluminum Bass drivers
Digital to Analog Converter
Devialet DAC embedded in Devialet intelligence Processor
24bits/96kHz
THD: -112dB
Processor
ARM Cortex-A9 1.25GHz processor 512MB DDR3-1600 memory
Side Plating
Body: black RAL 9017
Polished stainless steel sides
Black RAL 9017 dome drivers
Power Supply
IEC 100-240V ~ 50/60Hz
Power consumption: 0.5W (in standby)

Dimensions & Weights

Dimension
Width: 252 mm | Height: 255 mm | Depth : 342 mm
Weight
11.4 kg

Performances

Maximum Sound Level
103 dB SPL at 1 meter
Total amplification power
500 Watts RMS
Amplification Performance
THD+N* : 0.0005% | Saturation : 0 | Background Noise 0 dB SPL at 50 cm (-15,5 dB SPL at 3m) (*Total Harmonic Distortion + Noise)
Frequency response (bandwidth)
Bandwidth: 16Hz to 25kHz (@-6dB)
Accuracy in frequency response : ± 2dB from 20Hz to 20kHz

Features

Synchronisation
Phantom synchronisation via Wi-Fi and Ethernet.
Ethernet wiring is recommended for multiroom installation with more than 6 Phantoms.
Connectivity
Airplay 2
Spotify Connect
Bluetooth : A2D and AVRCP profiles, AAC, SBC audio codecs
Roon Ready (Inputs up to 24bits/96kHz)
UPnP Renderer (Inputs up to 24bits/96kHz)
Toslink optical input (Inputs up to 24bits/96kHz)
Network
Wi-Fi Dual-band (a/b/g/n/ac 2.4GHz & 5GHz)
Ethernet RJ-45 10/100/1000 Mbps (Gigabit)
App
Devialet app (iOS, Android)
