Home / Shop / Specials / Amplifiers/DACs / Wadax Atlantis Reference DAC and Reference Server. Ultra high-performance. Mint!
Sale!
Sold-Wadax Atlantis reference DAC & Server
  • Sold-Wadax Atlantis reference DAC & Server
  • Wadax Atlantis Reference DAC and Reference Server. Ultra high-performance. Mint!

    $221,495.00 $155,000.00

    Categories: Amplifiers/DACs, CD Players and Streamer, Specials Tags: audiophile, dac, high end audio, high-resolution files, high-resolution music, music server, streamer, wadax, wadax atlantis, wadax reference DAC, wadax reference server

    Sold Out

    Make An Inquiry

    THIS ITEM HAS SOLD.

    Wadax Atlantis Reference DAC and Reference Server. Superb audio system.

    Also included in the package, an Akasa optical cable to connect the two units, input card and two power supplies for the DAC.

    In mint condition.  Only one owner, who has meticulously maintained these units in a room free of smoke and with indirect lighting. Original boxes.

    Extremely rare opportunity! Reasonable offers will be considered.

    Insured and palletized shipping will be calculated according to the real delivery address. Items ship from NC.

    The Absolute Sound said about this combination:

    “Most of us have experienced the thrill of hearing a favorite album in a fabulous remastering. The best remastering jobs are transformative. You hear a newfound clarity; each instrument or voice is distinct and sonically separate; the bass suddenly has depth, texture, pitch, and nuance; the treble is smooth and liquid rather than hard and metallic; a murky haze gives way to crystalline clarity; and there’s an ease and warmth that draw you into the music. As a result, you experience the music in a different and more profound way.”

    Read more:

    https://www.theabsolutesound.com/articles/wadax-atlantis-reference-music-server/

    Winner of TAS’ Overall Product of the Year Award  in 2020.

    Specs and details below.

    • Share
    • Description

    Description

    WADAX ATLANTIS REFERENCE DAC AND REFERENCE SERVER – TECHNICAL INFORMATION

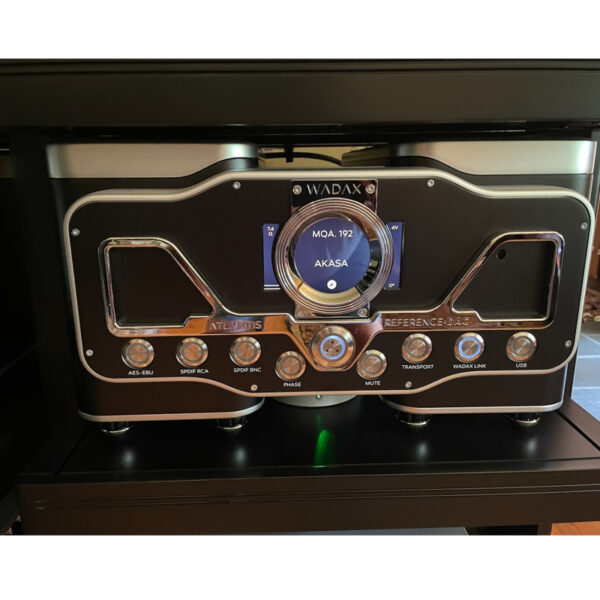

    WADAX ATLANTIS REFERENCE DAC

    – 23 individual printed circuit boards
    – More than 5500 discrete parts
    – Dual-differential musIC 3 128-bit-feed-forward error correction process
    – Fully balanced, dual mono design with complete physical and electrical separation of left and right channels

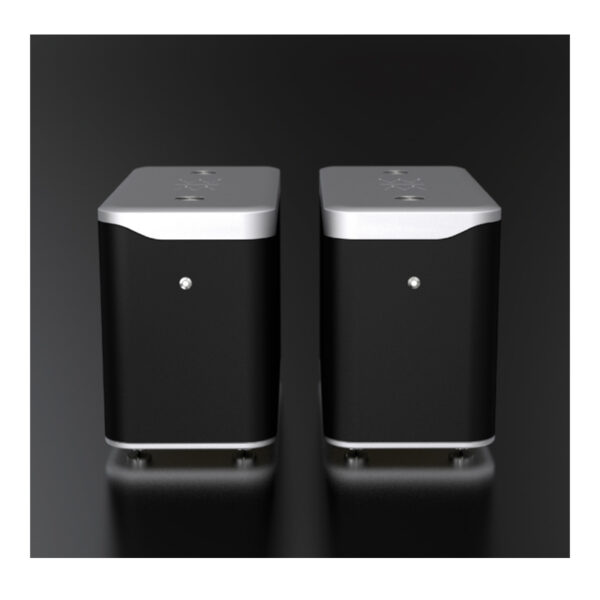

    – 10 purpose-wound, functionally specific power transformers
    – Digital circuitry time aligned to 100ps
    – 0.5uV of total rail noise (1Hz-100KHz): ultra sophisticated power supply with distributed regulation topology.
    – 30 local regulation stages, 5 stages of DC regulation.
    – User-adjustable gain and output impedance.
    – Zepto Reference clock: doubled the master clock frequency with only 12fs total jitter.

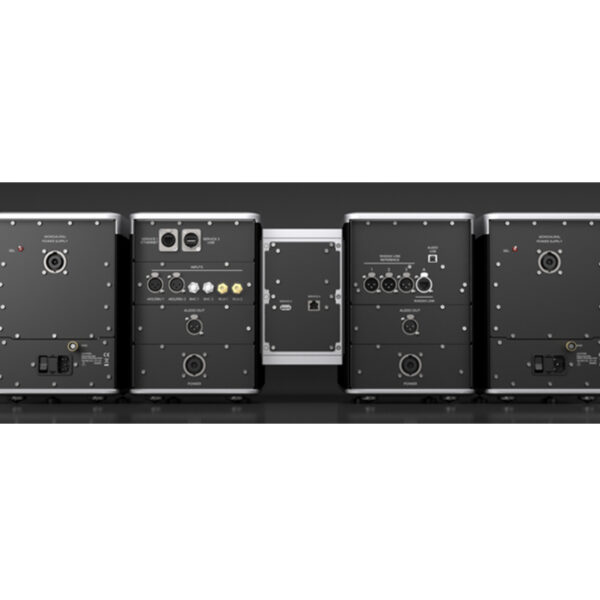

    Connectivity:

    Output Level: 1V / 2V / 4V
    Output impedance: 0.4 / 7.4 / 7.5 / 8.2 / 8.3 / 8.7 / 8.82 / 9.84 / 10 / 28.57 / 30 / 46.15 / 50 / 66.67 / 75 / 600 ohms

    Inputs: USB (32-384KHz, 16-24-32 bits, DSD64, DSD128, DSD256, MQA),
    2xSPDIF RCA (32KHz-192KHz, 16-24 bits)
    2xSPDIF BNC (32KHz-192KHz, 16-24 bits)
    2xAES-EBU (32KHz-192KHz, 16-24 bits)
    Native Reference Wadax Link (native PCM, DSD), 3xAES-EBU, 1 RJ45

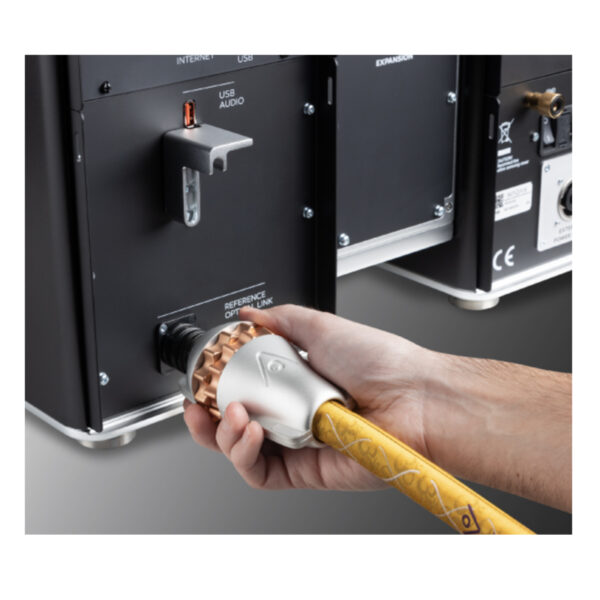

    Included: WADAX Akasa Optical Module

    User interface: 5 inch capacitive touch full-colour display 800×480

    Power: 100 / 120 / 220V, switchable by service, max 200W
    Remote support and OTA upgrade:
    software upgradeable over the Internet

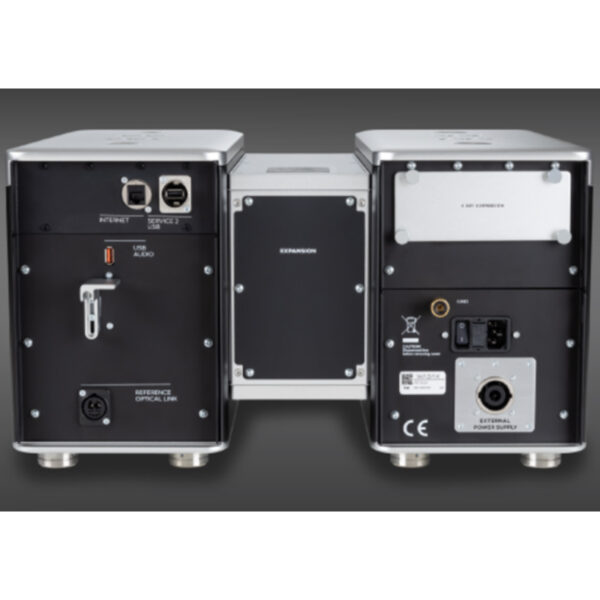

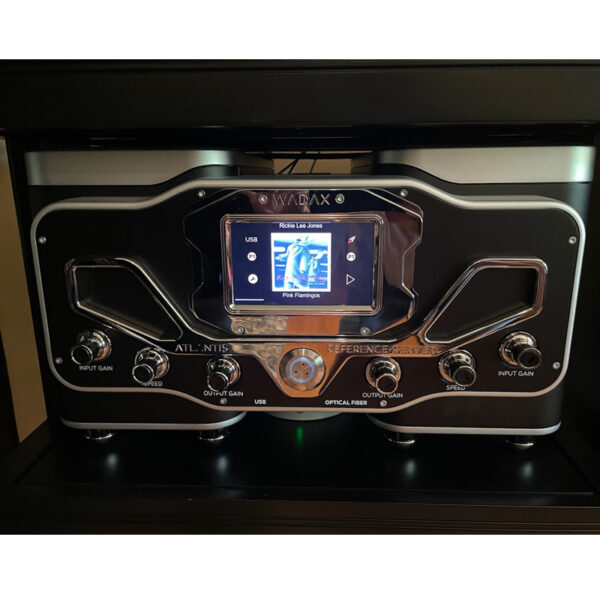

    WADAX ATLANTIS REFERENCE SERVER

    Dimensions: 48 cm (W) x 43.5 cm (D) x 11.5cm (H)
    Power: 100/110/220V, switchable by service, max 100W.
    Remote support and OTA upgrade:
    software upgradeable over the Internet

    Operating Temperature: 41ºF – 95ºF, 5ºC – 35ºC
    Operating Humidity: 15% – 75%, no condensations.
    Internet connection is required with a minimal bandwidth of 20Mbps
    Roon account required
    Ethernet speed capability: 1,000Mbps
    1 Wadax Akasa optical connection
    4 bays for storage expansion
    1 USB Audio port
    1 Service USB port
    Supported formats:
    WAV, WAV64, AIFF, FLAC, ALAC, OGG, DSD

    Weight: 94lbs (43Kg) without box
